SWR DRAINAGE

OUR Products

We provide the widest range of pipes and fittings, adhesive welding systems that are regularly lab tested.

100% inspection of both incoming and outgoing products

Bandhan UPVC Pipes

Lead-free, UV resistant, fire-resistant and environmentally friendly.

UPVC Pipes
Durable, cost-effective and low on maintenance.
Bandhan UPVC Pipes

Lead-free, UV resistant, fire-resistant and environmentally friendly.

UPVC Pipes

Durable, cost-effective and low on maintenance.

Bandhan Drainguard pipes enable fast and efficient removal of wastage without causing blockage and leakage. Besides being corrosion-resistant, they have a long life with zero maintenance. Check out the entire list in detail.

Category

PRODUCT Details

Thermal Expansion

SWR pipes and fittings are not concealed and at all times they are exposed to external surfaces and sunlight. The daily cycles of temperature varies at many places between 5°C to 20°C, which naturally leads to expansion & contraction of pipes. This thermal expansion is required to be taken into consideration in the design of a sanitation system. The expansion & contraction occurs more in vertical lines. Therefore, SWR pipes with integrated rings are most suitable for a vertical stack. It is necessary to maintain an expansion gap at rubber ring joints to allow movement of pipe due to thermal expansion.

Additional Info

  • Use pipes and fittings manufactured by Bandhan Pipes for optimum results.
  • Installation process should be carried as per instructions and safe practices must be followed.
  • Clean the pipe and fittings with a clean dry cloth to remove any dirt.
  • Ensure no sharp edges are in contact with the fittings surface while inserting the pipe.
  •  Ensure proper alignment of pipe and fittings to avoid stress on the joints.
  • Our composite rubber ring ensures flexibility to accommodate linear expansion and contraction without any leakage.
  • Bandhan Drainguard sanitation system is UV Stabilized and weather proof.

FAQs

SWR stands for soil, waste and rain water. SWR pipes and fittings are used for building drainage systems

Bandhan SWR sanitation system is versatile in nature, it is used for infrastructural drainage system, for rainwater discharge and for venting foul gases and odor.

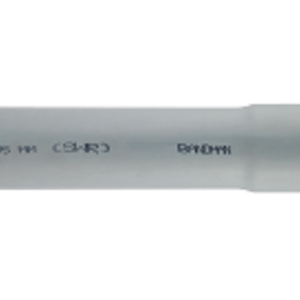

Type – B pipes have a higher wall thickness than Type – A pipes. Which makes the soil and rainwater discharge much easier.

Bandhan Drainguard sanitation system comes in 2 types which are 1) Selfit/pushfit pipes and fittings which are joined using solvent cement and 2) integrated rubber ring joint pipes and fittings which comes with a rubber ring inside for easy insertion.

Bandhan Drainguard Sanitation system is UV Stabilized during the manufacturing process making the safe for use even when they are exposed to sunlight.

Bandhan Drainguard pipes come in sizes of 75mm, 90mm, 110mm & 160mm in Type – A and Type – B in Ringfit as well as Selfit/Pushit joints as per IS – 13592 and fittings in 75mm & 110mm as per IS – 14735.
